Cylinder Block Temperature Sensor
WARNING: This page is about a different variant/trim than selected.

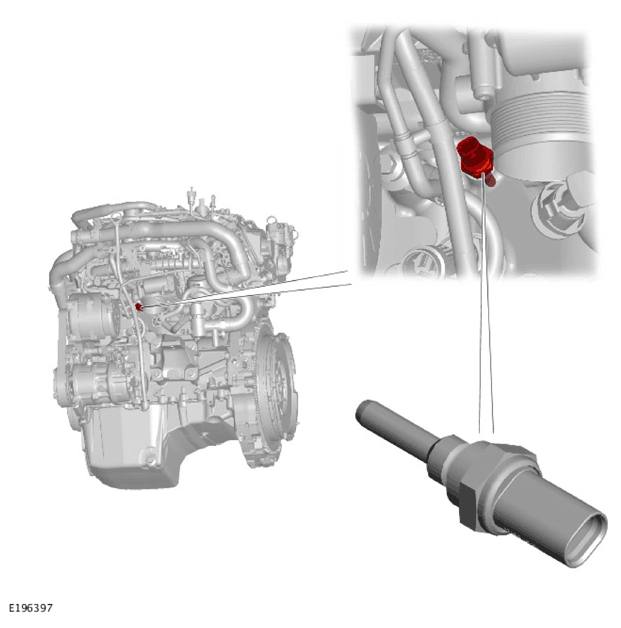

The cylinder block temperature sensor is located in a threaded hole on the left side of the cylinder block, between the generator and the electric throttle.
The sensor is a Negative Temperature Coefficient (NTC) type sensor with a 2 pin connection. There is 1 pin which receives a 5V reference voltage from the Powertrain Control Module (PCM) and the second pin provides a signal feedback to the PCM.
