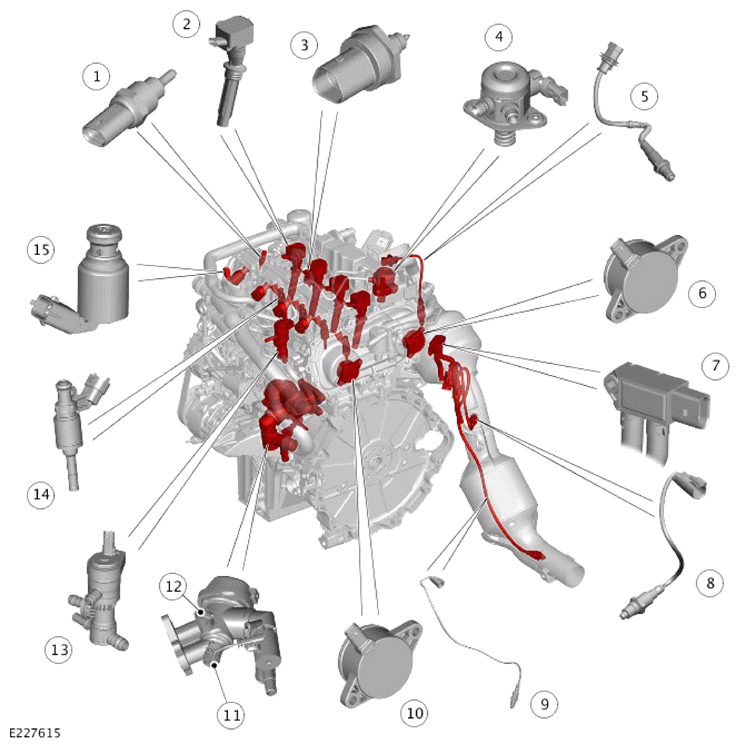

Component Location - 2 Of 4
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Continuous Variable Valve Lift (CVVL) assembly oil temperature sensor |
| 2 | Ignition coil (quantity 4) |
| 3 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 4 | High Pressure (HP) fuel pump |
| 5 | Pre catalyst Heated Oxygen Sensor (HO2S) |
| 6 | Variable Camshaft Timing (VCT) solenoid - Exhaust |
| 7 | Exhaust back-pressure sensor (if equipped) |
| 8 | Mid catalyst HO2S |
| 9 | Post catalyst HO2S - North American Specification (NAS) market vehicles only |
| 10 | VCT solenoid - Intake |
| 11 | Heater element - Electric thermostat |
| 12 | Engine Coolant Temperature (ECT) sensor - Electric thermostat |
| 13 | Purge valve |
| 14 | Fuel injector (quantity 4) |
| 15 | CVVL solenoid (quantity 4) |
