Radiator (G1998227): Notes

WARNING: This page is about a different variant/trim than selected.
26.40.01 RADIATOR ASSEMBLY - RENEW 2000 CC, GTDI 2.50
G11350981Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.40.01 RADIATOR ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL 2.20
G11345999Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.40.01 RADIATOR ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL 1.90
G11344178Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.40.01 RADIATOR ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126) 1.90
G11345999Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

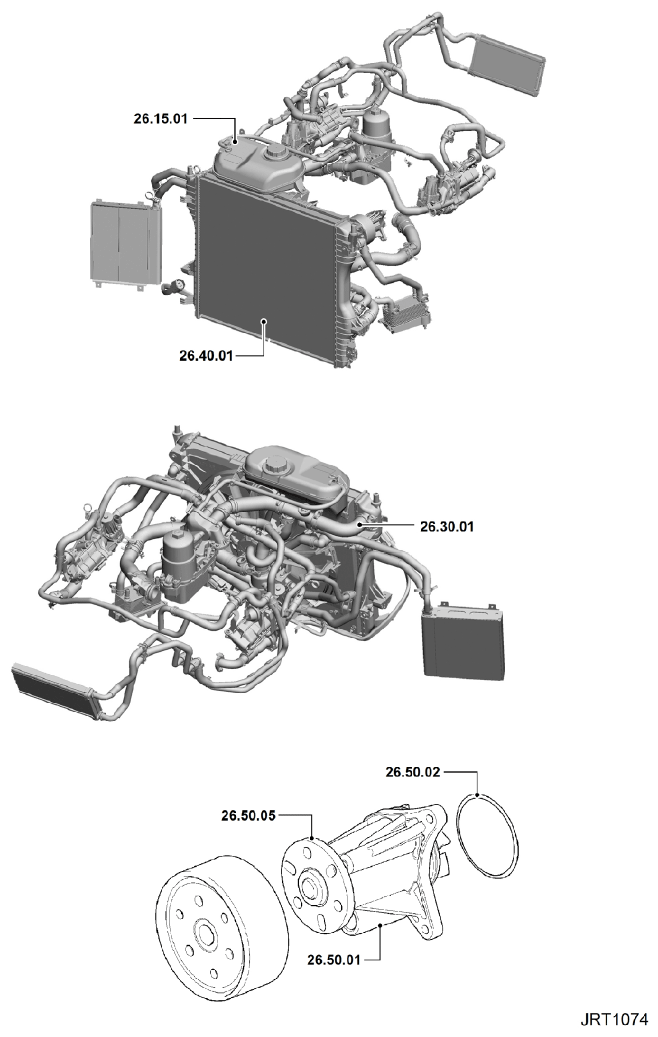

26.40.01 RADIATOR ASSEMBLY - RENEW 3000 CC, TDV6 2.70
G11351615Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.40.14 SUPER CHARGER RADIATOR - RENEW 3000 CC, AJ V6 (AJ126) 1.80
G11345999Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
