Engine Coolant Level Switch (G2132077): Notes

WARNING: This page is about a different variant/trim than selected.

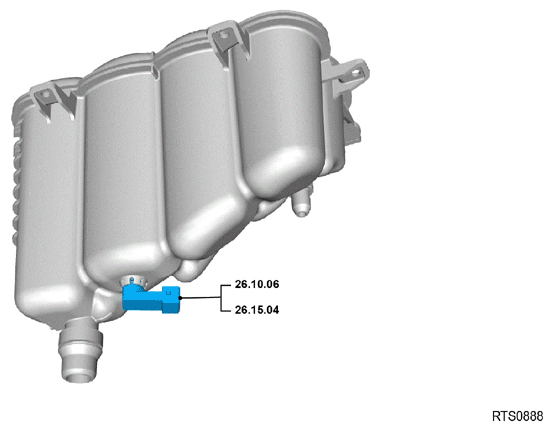

26.15.04 COOLANT FILL LEVEL INDICATOR - RENEW 2000 CC, INGENIUM DIESEL 0.10
G13985847Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.15.04 COOLANT FILL LEVEL INDICATOR - RENEW 2000 CC, INGENIUM PETROL 0.10
G13985847Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.15.04 COOLANT FILL LEVEL INDICATOR - RENEW 3000 CC, AJ V6 (AJ126) 0.10
G13985847Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.15.04 COOLANT FILL LEVEL INDICATOR - RENEW 3000 CC, TDV6 0.10
G13985847Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.15.04 COOLANT FILL LEVEL INDICATOR - RENEW ALL DERIVATIVES 0.30
G11345998Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
