Block Heater (G2033416): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
- Remove the generator.
Refer to: GENERATOR

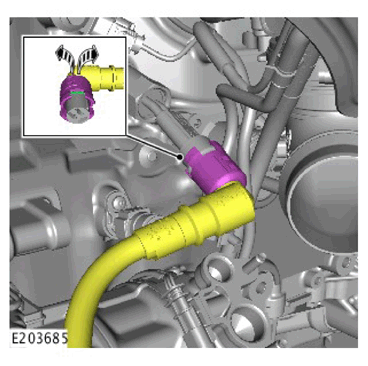

Disconnect the electrical connector.

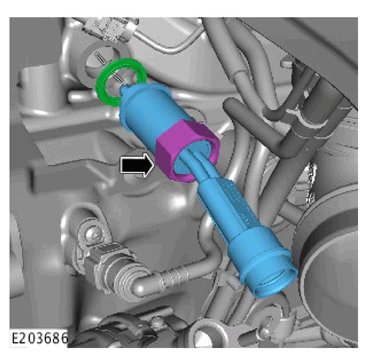

- Remove the block heater.
- Remove the gasket.
- Examine the gasket for wear and replace it if required.
