Auxiliary Radiator
WARNING: This page is about a different variant/trim than selected.
NOTE:
Right hand side shown, left hand side is similar.

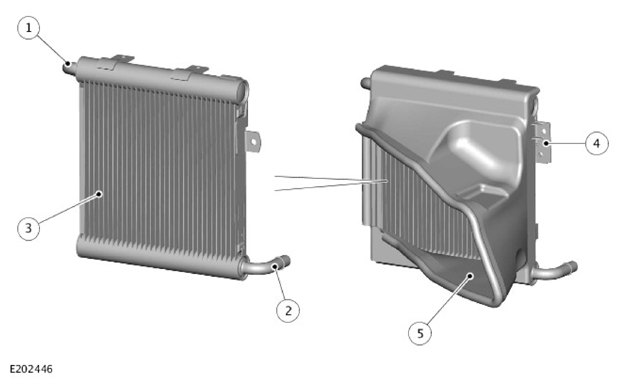

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Auxiliary radiator inlet |
| 2 | Hose connection - Auxiliary radiator outlet |
| 3 | Auxiliary radiator |
| 4 | Radiator support bracket |
| 5 | Front air duct |
The auxiliary radiator is located on the right side of the cooling pack, behind the outer air intake in the front bumper. The auxiliary radiator is installed in air ducts attached to the front bumper armature and the front end carrier. The upper end tank of the auxiliary radiator is held in a support bracket in the air duct.
The auxiliary radiator is connected in parallel with the radiator to increase the engine cooling capacity.
In hot climate markets, an additional auxiliary radiator is installed on the left side, behind the outer air intake in the front bumper to improve the cooling capacity of the engine cooling system.
