Exhaust Back Pressure Sensor (G2401318): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

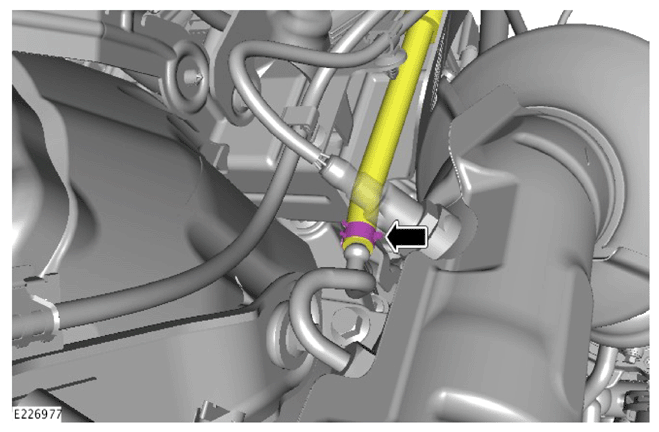

- Release the clip.
- Release the Gasoline Particulate Filter (GPF) high pressure hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

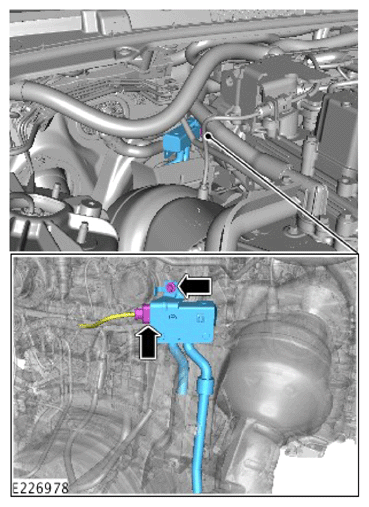

- Remove the bolt.
- Disconnect the electrical connector.
- Remove the GPF differential pressure sensor assembly.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

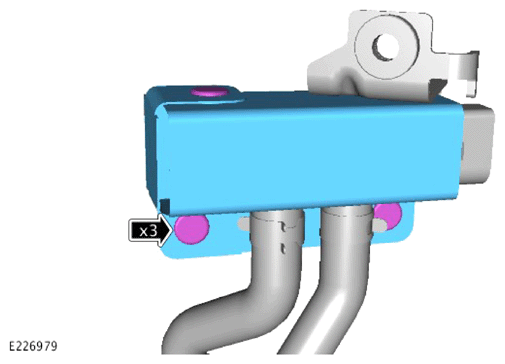

Release the 3 clips and remove the cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

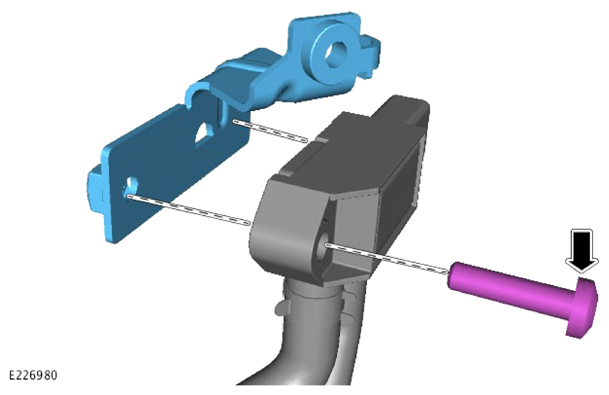

Remove the bolt and the GPF differential pressure sensor bracket.
