Rear Section
WARNING: This page is about a different variant/trim than selected.

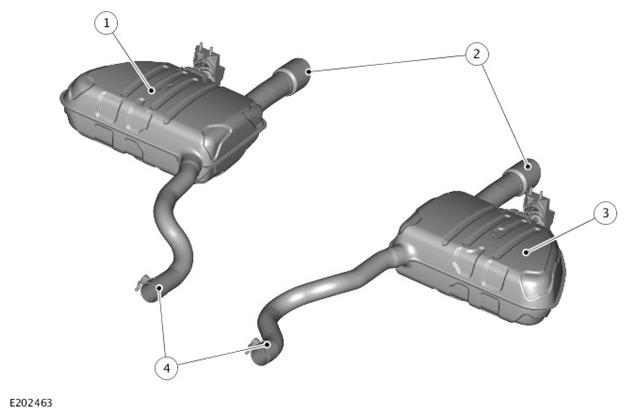

| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear right silencer |
| 2 | Outlet pipe (quantity 2) |
| 3 | Rear left silencer |
| 4 | Inlet pipe (quantity 2) |
The rear section is divided into right and left silencer assemblies. The exhaust gases are expelled from each rear silencer via a single outlet pipe.
There are 2 different tailpipe finishers available depending on the engine specification:
- Ingenium I4 2.0L Petrol 250PS tailpipe finisher diameter is 75 mm
- Ingenium I4 2.0L Petrol 300PS outlet tailpipe finisher diameter is 84 mm.
A mounting rubber supports each rear silencer. Each mounting rubber connects the rear silencer to a hanger bracket bolted to the rear floor.
