Cylinder Head Temperature Sensor (G1913812): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Removal steps in this procedure contains installation details.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: INTAKE AIR RESONATOR

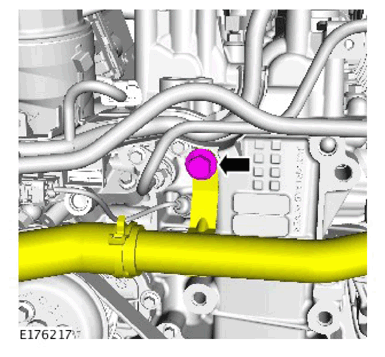

  2. G11328535Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25 Nm

  3. G11308421Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. CAUTION: Discard the cylinder head temperature sensor.
    G11308422Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm
