Charge Air Temperature Sensors

WARNING: This page is about a different variant/trim than selected.

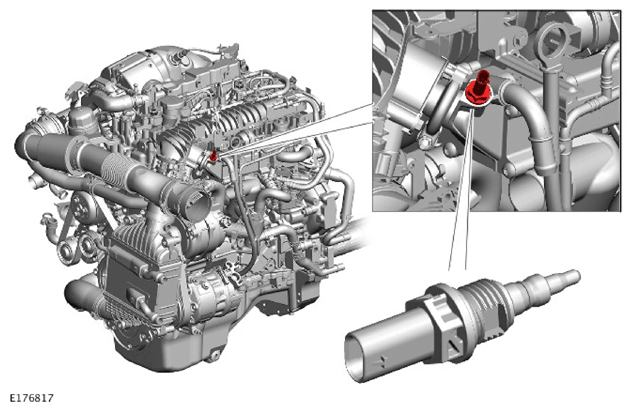

Charge Air temperature Sensor - High Pressure (HP) EGR Cooler Outlet EU4 and NAS Only

G11308379Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Charge Air temperature Sensor - Low Pressure (LP) EGR Cooler Outlet EU5/6 and NAS Only

G11308380Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

EU4 vehicles are fitted with a charge air temperature sensor in the High Pressure (HP) Exhaust Gas Recirculation (EGR) cooler outlet pipe to the inlet manifold. The sensor receives a reference voltage from the PCM and returns a signal relative to the exhaust gas output from the HP EGR cooler.

EU5/6 and NAS vehicles have a charge air temperature sensor fitted in the Low Pressure EGR cooler outlet to the LP EGR valve. The sensor receives a reference voltage from the PCM and returns a signal relative to the exhaust gas output from the LP EGR cooler.
