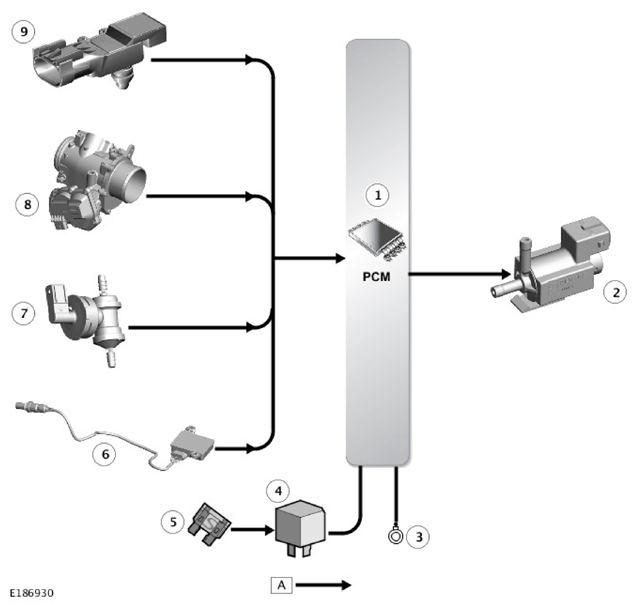

Control Diagram - Sheet 7 of 7
WARNING: This page is about a different variant/trim than selected.
NOTE:
A
= Hardwired
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Active engine mount solenoid |
| 3 | Ground |
| 4 | PCM Relay - located in Engine Junction Box (EJB) |
| 5 | Fuse - located in Battery Junction Box (BJB) |
| 6 | Post Selective Catalyst Reduction (SCR) Nox sensor and module (NAS only) |
| 7 | Brake vacuum sensor |
| 8 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) pressure sensor |
| 9 | Crankcase pressure sensor (NAS only) |
| 10 | Post Selective Catalyst Reduction (SCR) soot sensor and module (NAS only) |
