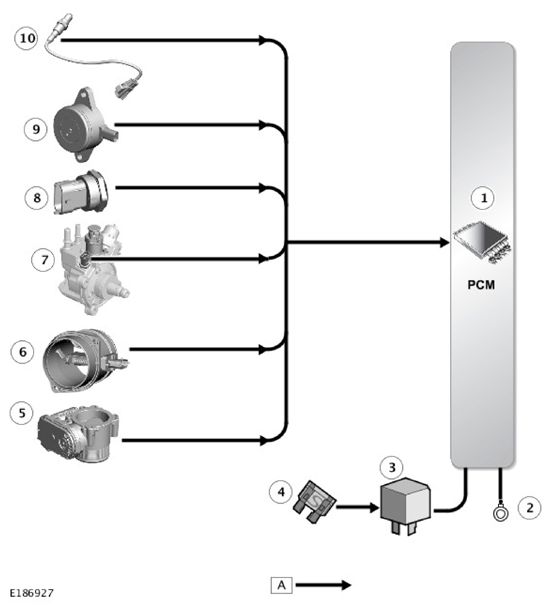

Control Diagram - Sheet 4 of 7
WARNING: This page is about a different variant/trim than selected.
NOTE:
A
= Hardwired
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Ground |
| 3 | PCM Relay - located in Engine Junction Box (EJB) |
| 4 | Fuse - located in Battery Junction Box (BJB) |
| 5 | Electric throttle |
| 6 | Mass Air Flow/Intake Air Temperature (MAF/IAT) sensor |
| 7 | Fuel temperature sensor |
| 8 | Fuel rail pressure sensor |
| 9 | Variable Camshaft Timing solenoid |
| 10 | Heated Oxygen Sensor (HO2S) |
