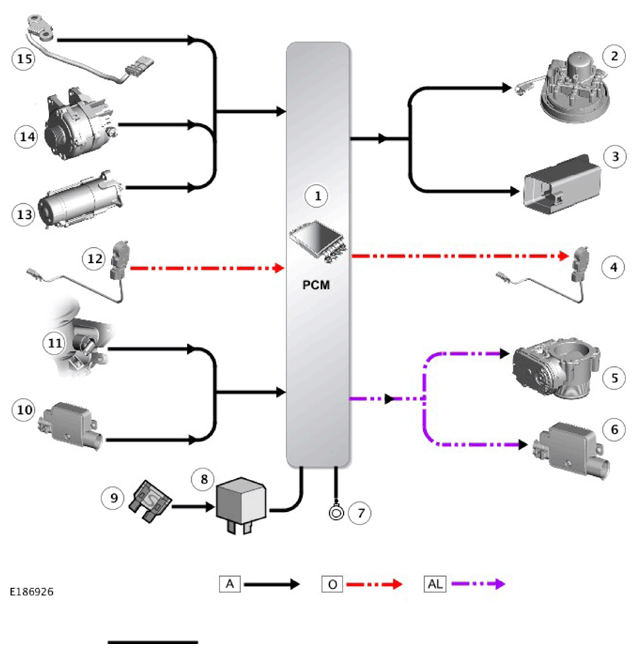

Control Diagram - Sheet 3 of 7
WARNING: This page is about a different variant/trim than selected.
NOTE:
A
= Hardwired; O
= LIN; AL
= PWM;
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Diesel Exhaust fluid (DEF) tank module |
| 3 | DEF heater control unit |
| 4 | Active air grille shutter motor |
| 5 | Electric throttle |
| 6 | Engine cooling fan control module |
| 7 | Ground |
| 8 | PCM Relay - located in Engine Junction Box (EJB) |
| 9 | Fuse - located in Battery Junction Box (BJB) |
| 10 | Engine cooling fan control module |
| 11 | Engine Coolant Temperature (ECT) sensor (located in electric thermostat housing) |
| 12 | Active air grille shutter motor |
| 13 | Starter motor |
| 14 | Generator |
| 15 | Gear selector position switch (manual transmission only) |
