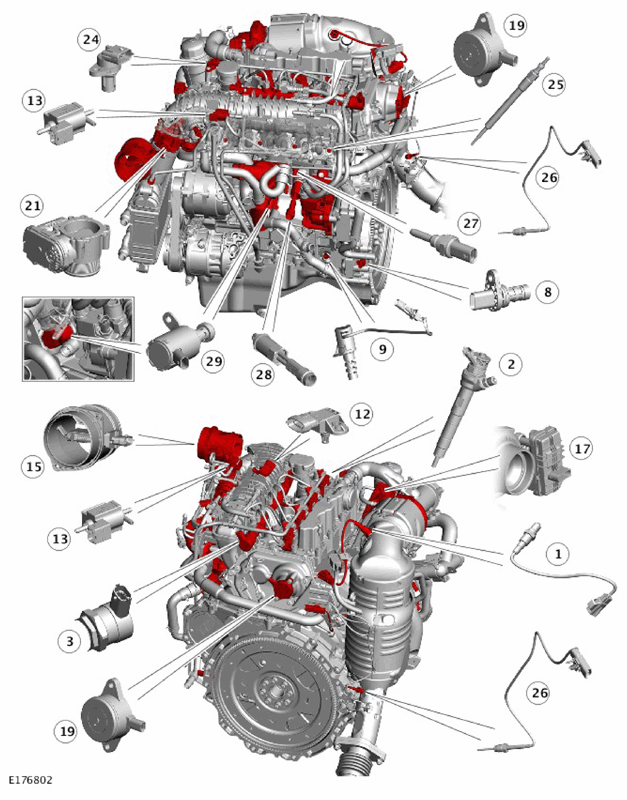

Component Location - EU4 - Sheet 2 Of 2
WARNING: This page is about a different variant/trim than selected.
NOTE:
HP EGR Cooler and EGR valve removed for clarity
| ITEM | DESCRIPTION |
|---|---|
| 1 | Heated Oxygen Sensor (HO2S) |
| 2 | Fuel injector (4 off) |
| 3 | Fuel rail pressure control valve |
| 4 | High Pressure (HP) Exhaust Gas Recirculation (EGR) valve and motor |
| 5 | HP EGR cooler bypass valve position sensor |
| 6 | Fuel metering valve |
| 7 | Fuel temperature sensor |
| 8 | Crankshaft Position (CKP) sensor |
| 9 | Oil pressure control solenoid electrical connector |
| 10 | Electric thermostat and Engine Coolant Temperature (ECT) sensor |
| 11 | Charge air temperature sensor (EGR cooler outlet) |
| 12 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 13 | Exhaust Gas Recirculation (EGR) cooler bypass valve solenoid |
| 14 | Fuel rail pressure sensor |
| 15 | Mass Air Flow (MAF)/Intake Air Temperature (IAT) sensor |
| 16 | Variable coolant pump |
| 17 | Variable Geometry Turbocharger vane actuator |
| 18 | Exhaust gas temperature sensor - pre catalytic converter |
| 19 | Variable Camshaft Timing (VCT) solenoid |
| 20 | Charge air cooler temperature sensor |
| 21 | Electric throttle |
| 22 | Cylinder head temperature sensor |
| 23 | Oil pressure and temperature sensor |
| 24 | Camshaft Position (CMP) sensor |
| 25 | Glow plug (4 off) |
| 26 | Exhaust gas temperature sensor - post catalytic converter |
| 27 | Cylinder block temperature sensor |
| 28 | Block heater (if fitted) |
| 29 | Piston cooling oil jets solenoid |
