High Pressure Oil Supply Pipe - INGENIUM I4 2.0L Diesel - High Power (G1933085): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: All precautions should be taken to avoid any oil or coolant contaminating the accessory drive belt or pulleys. If the accessory drive is contaminated with oil or coolant, clean the pulleys and install a new accessory drive belt.

NOTE:

This procedure contains some variation in the illustrations depending on vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the low pressure exhaust gas recirculation cooler.
Refer to: LOW PRESSURE EXHAUST GAS RECIRCULATION COOLER
WARNING: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

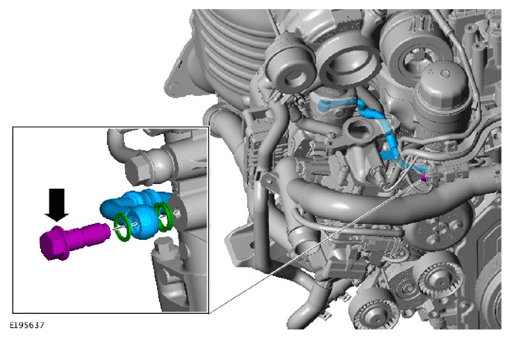

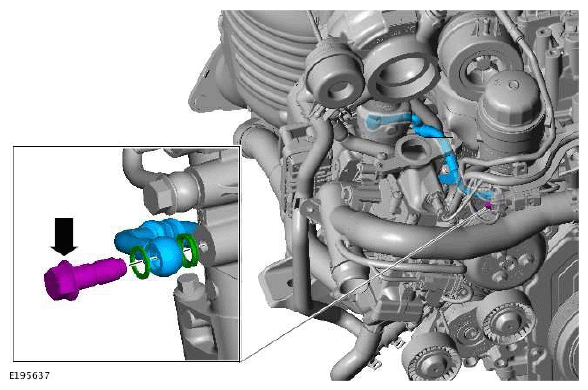

- Release the turbocharger oil supply tube.
- Remove and discard the banjo bolt and sealing washers.
WARNING: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

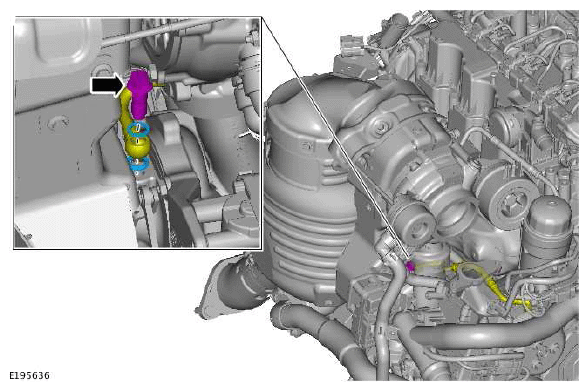

- Remove the turbocharger oil supply tube.
- Remove and discard the banjo bolt and sealing washers.
