Auxiliary Fuel Pump (G2473719): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Avoid flames, sparks or lighted substances.
- Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.
- Be prepared to collect escaping fuel.
CAUTION:
- Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
- Release the fuel system pressure.
Refer to: FUEL SYSTEM PRESSURE RELEASE
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
-
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Release the 2 fuel lines.
-
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

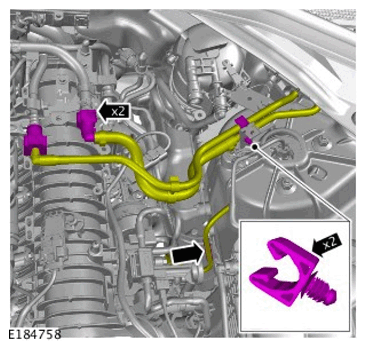

- Release the 2 fuel line clips.
- Release the 2 fuel lines.

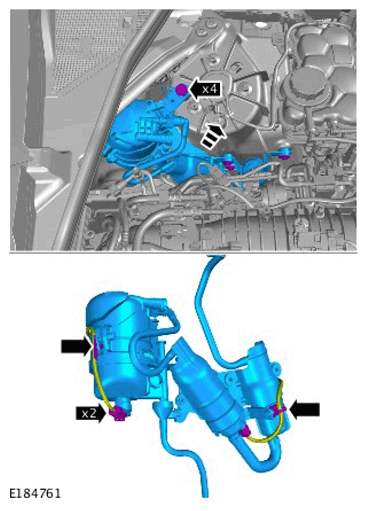

- Remove the 4 bolts.
- Disconnect the 2 electrical connectors.
- Release the 2 wiring harness clips.
- Remove the fuel filter and auxiliary fuel pump assembly.
-
NOTE: Only do the following steps, if a new component is to be installed.

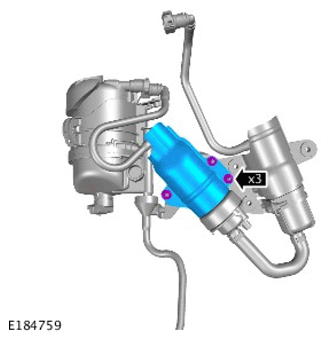

- Remove the 3 nuts.
- Remove the auxiliary fuel pump cover.

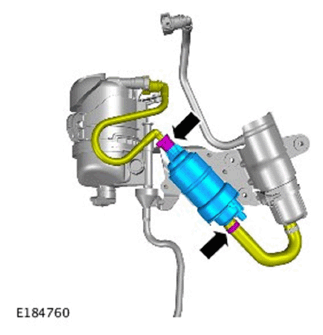

- Remove and discard the hose clamp.
- Release the 2 fuel lines.
- Remove the auxiliary fuel pump.
