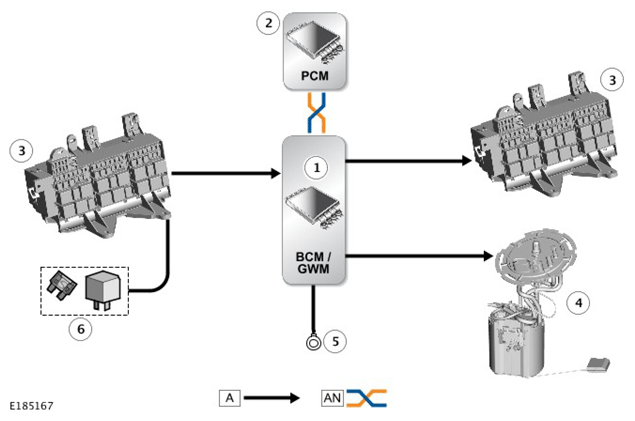

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN BUS
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Powertrain Control Module (PCM) |
| 3 | Rear Junction Box (RJB) |
| 4 | Fuel Pump Module |
| 5 | Ground |
| 6 | Power supply and fuel pump relay - Rear Junction Box (RJB) |
