Fuel Cooler
WARNING: This page is about a different variant/trim than selected.

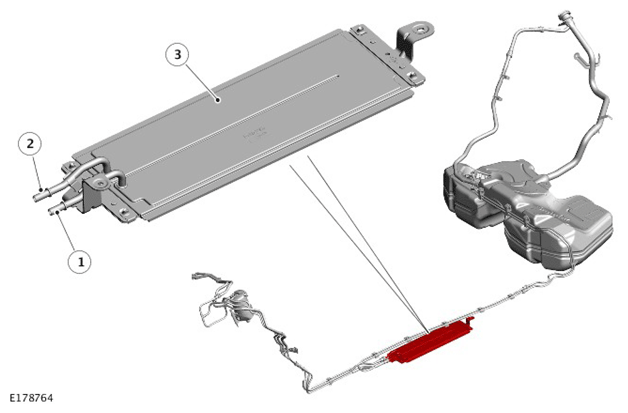

| ITEM | DESCRIPTION |
|---|---|
| 1 | Inlet - Feed from fuel tank and return from engine fuel rail |
| 2 | Fuel feed outlet |
| 3 | Fuel cooler (low pressure side - under vehicle) |
The low pressure side fuel cooler is situated under the vehicle floorpan, below the left front seat.
The cooler is air cooled. Fuel flow through the underfloor cooler is controlled by the fuel filter.
