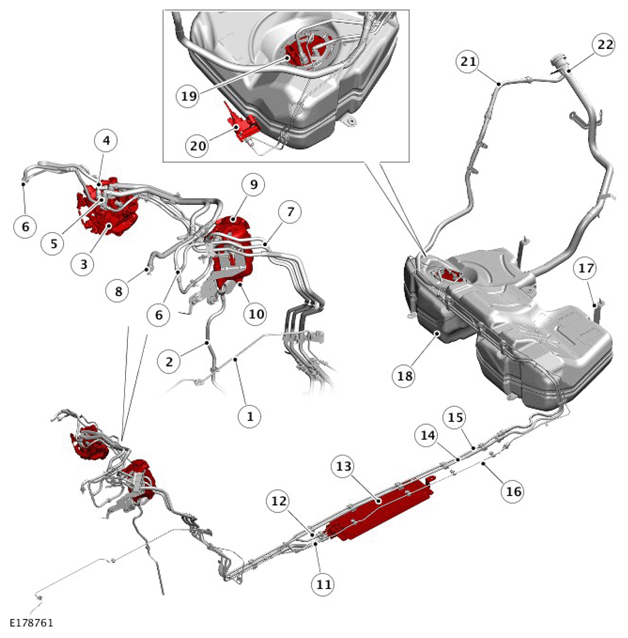

TDV6 3.0L Diesel - Fuel Tank And Lines
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel supply pipe - Fuel Fired Booster Heater (FFBH) (if fitted) |
| 2 | Fuel filter water drain tube |
| 3 | High Pressure (HP) fuel pump |
| 4 | Pipe - fuel return from High Pressure (HP) pump |
| 5 | Pipe - fuel return to fuel tank |
| 6 | Pipe - injector leak-off return line |
| 7 | Pipe - fuel return from fuel rail to fuel cooler |
| 8 | Pipe - fuel supply from fuel filter to HP fuel pump |
| 9 | Fuel filter assembly |
| 10 | Water In Fuel (WIF) sensor |
| 11 | Line - fuel return from engine to fuel cooler |
| 12 | Line - fuel supply from fuel cooler to fuel filter |
| 13 | Fuel cooler (low pressure side - under vehicle) |
| 14 | Line - fuel return to fuel tank |
| 15 | Line - fuel supply from fuel pump module |
| 16 | Line - Fuel Fired Booster Heater (FFBH) supply (if fitted) |
| 17 | Fuel tank support strap (2 off) |
| 18 | Fuel tank assembly |
| 19 | Fuel pump module |
| 20 | Fuel Fired Booster Heater (FFBH) fuel pump (if fitted) |
| 21 | Pipe - fuel tank breather |
| 22 | Pipe - Fuel filler |
