Rear Silencer - INGENIUM I4 2.0L Diesel - Mid, Low Power (G2152853): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

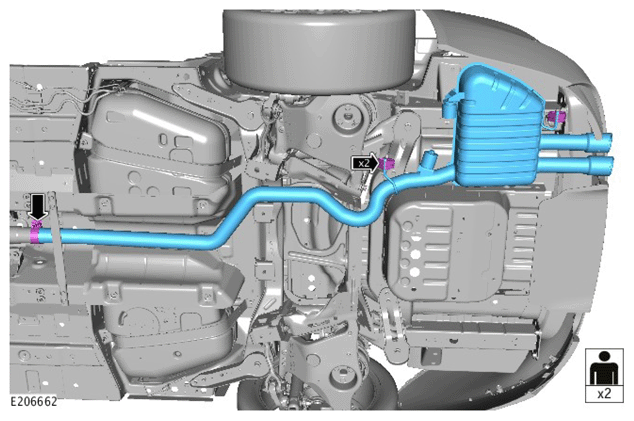

- Remove the 2 exhaust mounting rubbers.
- Remove the exhaust clamp.
- With the assistance of another technician, remove the exhaust system.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the exhaust Noise Vibration and Harshness (NVH) damper.

Torque: 22 Nm
