Rear Silencer - INGENIUM I4 2.0L Diesel - Mid, Low Power (G2152853): Installation
WARNING: This page is about a different variant/trim than selected.
- Install the exhaust Noise Vibration and Harshness (NVH) damper.
Torque: 22 Nm
-
- With the assistance of another technician, install the exhaust system.
- Install the 2 exhaust mounting rubbers.
- Do not tighten the exhaust clamp at this stage.

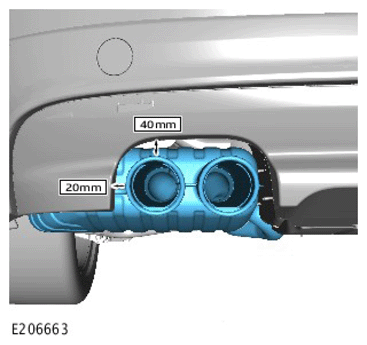

- When installing the rear muffler make sure the mark on the rear muffler is positioned leaving a 40mm gap between the top of the rear muffler and the rear bumper cover.
- When installing the rear muffler make sure the mark on the rear muffler is positioned leaving a 20mm gap between the sides of the rear muffler and the rear bumper cover.
- Tighten the exhaust clamp.
Torque: 55 Nm
- Lower the vehicle.
