NVH Damper - VIN Range: Y00005/LCY87569 (G2703193): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

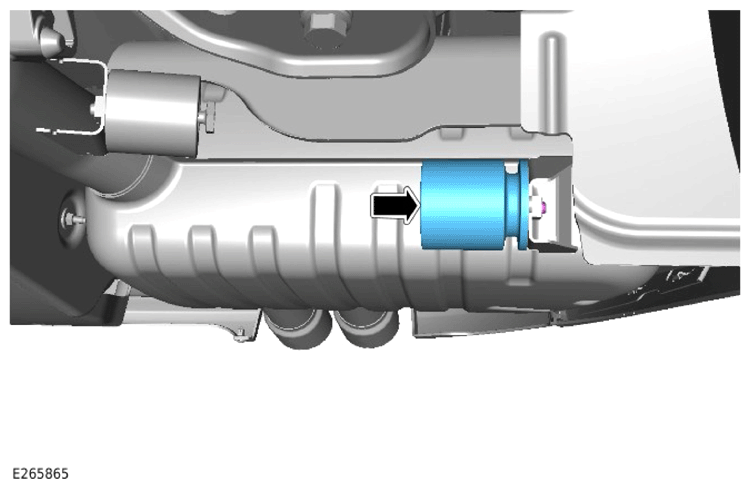

- Install the new exhaust NVH mass damper.
- Install and tighten the new bolt.
Renew Part: Mass damper bolt Quantity: 1 .

Torque: 22 Nm
NOTE: Required gap of 20 mm.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

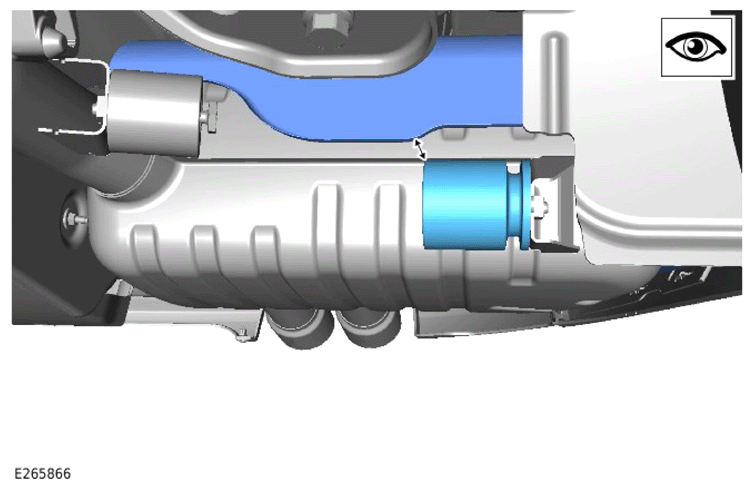

- Measure the gap between the exhaust NVH damper and the heatshield.

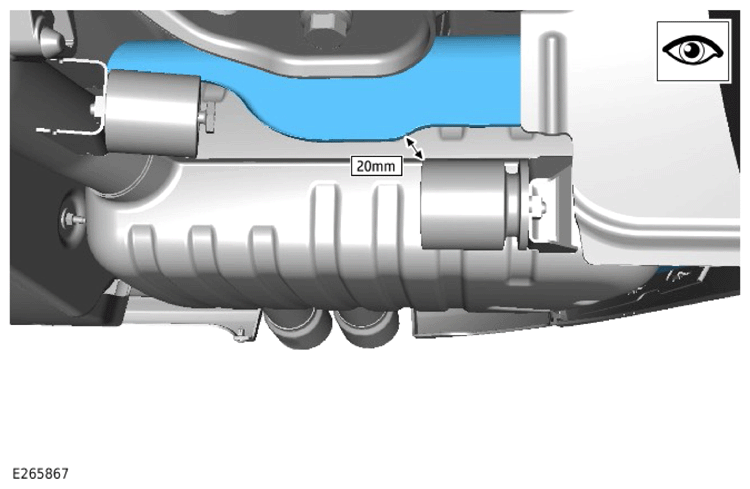

NOTE: Make sure there is a gap of 20 mm.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the heatshield away from the exhaust NVH damper towards the duck's foot NOT towards the exhaust silencer.
