Catalytic Converter To Turbocharger Clamp (G2782561): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

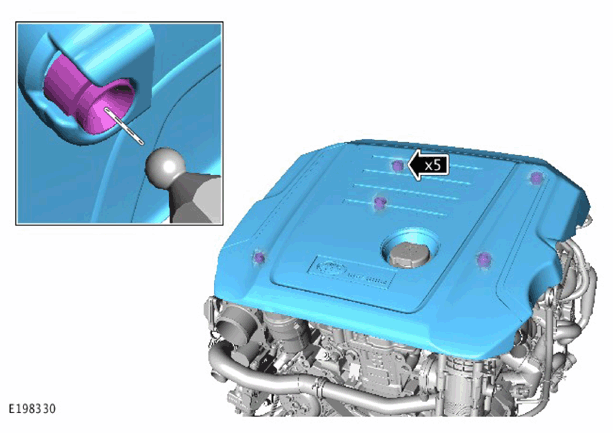

- Release the 5 grommets.
- Remove the engine cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 5 bolts.
- Remove the heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using suitable cutting/grinding equipment remove the clamp weld at the points illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the nut.
- Remove and discard the clamp.
