Catalytic Converter (G1868614): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool, install the Heated Oxygen Sensor (HO2S).

Special Tool(s): 310-121

Torque: 48 Nm
CAUTION: The catalytic converter to turbocharger gasket must be installed to the orientation shown in the illustration.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new catalytic converter to turbocharger gasket.

Renew Part: Catalytic converter to turbocharger gasket Quantity: 1 .
Install the catalytic converter.
CAUTION:
- Do not use power tools to remove or install the clamp.
- Only tighten the nut finger tight at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

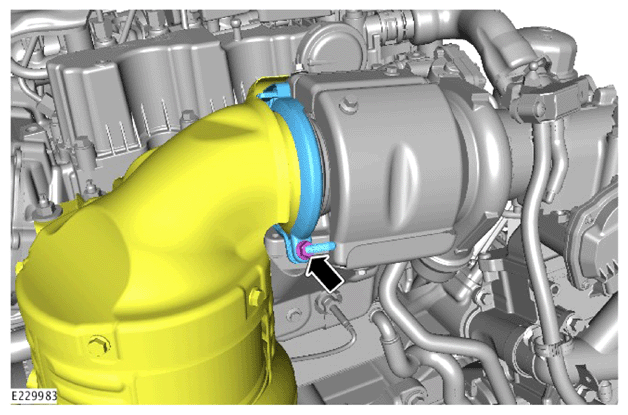

Install a new catalytic converter to turbocharger clamp but do not fully tighten at this stage.

Renew Part: Catalytic converter to turbocharger clamp Quantity: 1 .
CAUTION: Only tighten the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 catalytic converter lower bracket bolts but do not tighten at this stage.
CAUTION: Only tighten the nuts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 catalytic converter upper bracket nuts but do not tighten at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the catalytic converter to the turbocharger clamp.

Torque: 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 2 catalytic converter upper bracket nuts.

Torque: 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 2 catalytic converter lower bracket bolts.

Torque: 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the electrical connector.
- Secure the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new gasket.
  Renew Part: Diesel Particulate Filter (DPF) to exhaust gasket Quantity: 1 .
- Install and tighten the 2 nuts.
Torque: 40 Nm
Install the exhaust system.
Refer to: EXHAUST SYSTEM - VEHICLES WITHOUT: DIESEL EXHAUST FLUID

Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL EXHAUST FLUID
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
