Rattling Noise From The Rear Exhaust

WARNING: This page is about a different variant/trim than selected.

Check for contact between the rear exhaust NVH mass damper and the rear exhaust heatshield. Check for movement of the NVH mass damper caused by a loose bolt and/or a deteriorated NVH mass damper rubber

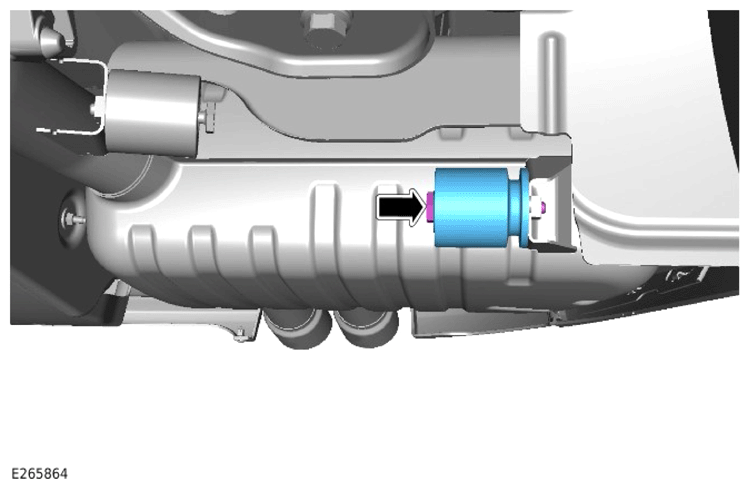

Remove and discard the exhaust NVH mass damper and bolt. REFER to: - NVH DAMPER

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Install a new NVH mass damper to the rear exhaust. REFER to: NVH DAMPER

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Measure the gap between the new NVH mass damper and the exhaust heat shield.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Reposition the heatshield away from the exhaust NVH mass damper towards the duck's foot NOT towards the exhaust silencer.
NOTE: Make sure there is a gap of 20 mm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
