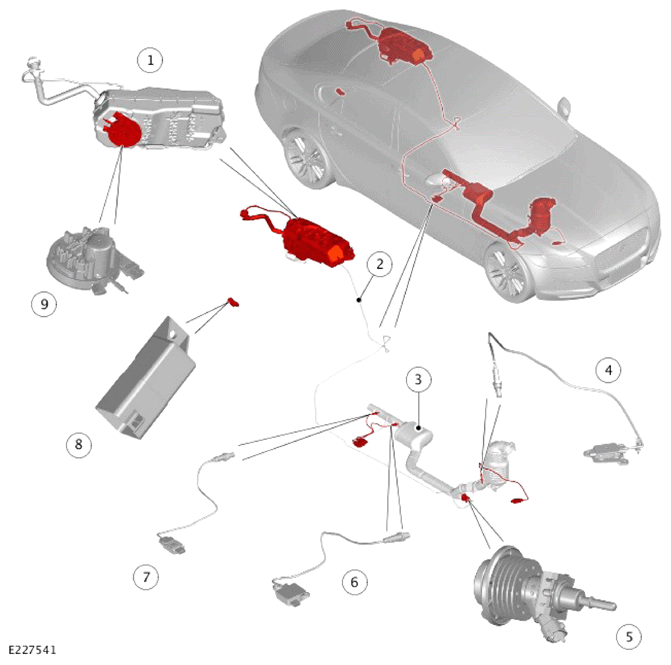

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Diesel Exhaust Fluid (DEF) tank |
| 2 |
DEF line |
| 3 |
Selective Catalytic Reduction (SCR) catalytic converter |
| 4 |
Pre SCR NOx sensor |
| 5 |
DEF injector |
| 6 |
Post SCR particulate matter sensor |
| 7 |
Post SCR NOx sensor |
| 8 |
DEF heater control unit |
| 9 |
DEF tank module |
