Component Location - INGENIUM I4 2.0L Diesel - Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

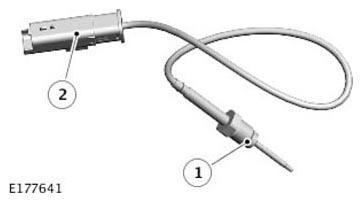

G11314532Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Temperature sensor
2 Electrical connection
