Transmission Control Module And Main Control Valve Body - RWD (G1820949): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Be prepared to collect escaping fluid.
Make sure all suitable safety precautions are taken to protect the TCM and main control valve body electrical connector pins against electrostatic discharge.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the transmission fluid pan.
Refer to: TRANSMISSION FLUID PAN, GASKET AND FILTER
CAUTION: Take precautions to avoid any electrostatic charging, which could damage this component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the oil accumulator electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

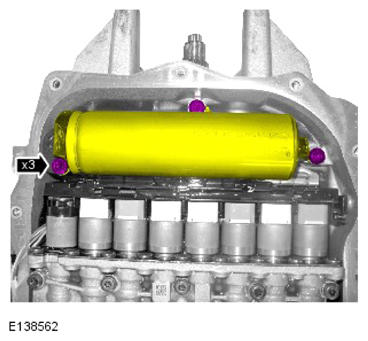

Remove the 3 oil accumulator retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the oil accumulator.
CAUTION: Make sure all suitable safety precautions are taken to protect the Transmission Control Module (TCM) and main control valve body electrical connector pins against electrostatic discharge.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 3 valve body bracket bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

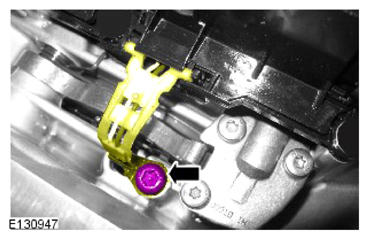

Remove the electrical harness bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the transmission electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Note the orientation of the component prior to removal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

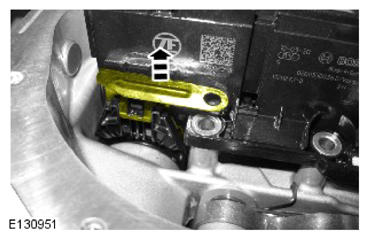

Release the electrical connector retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

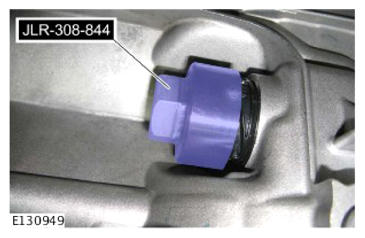

Using the special tool, turn the electrical connector 90 degrees clockwise.

Special Tool(s): JLR-308-844
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

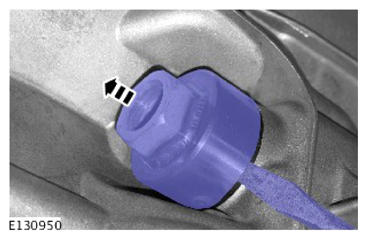

Using a suitable tool, release the electrical connector from the transmission casing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

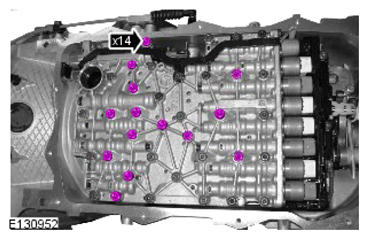

Remove the 14 valve body assembly bolts.
NOTE:
- Note the orientation of the pressure pipes prior to removal.
- Note the position of the manual park brake release.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

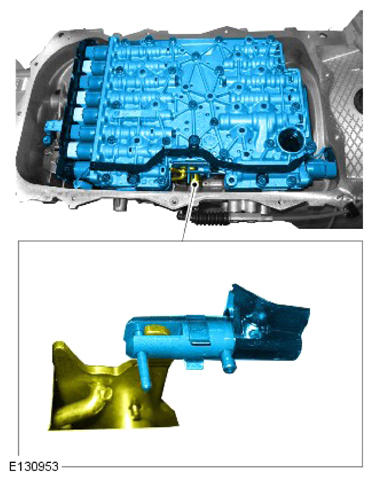

Release the linkage and remove the valve body.
