Torque Converter (G2046534): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Raise and support the vehicle using a suitable 2 post lift.
Refer to: LIFTING

The following step(s) applies to:

4WD vehicles
Remove the transmission.
Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL

The following step(s) applies to:

2WD vehicles
Remove the transmission.
Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL

The following step(s) applies to:

All vehicles
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

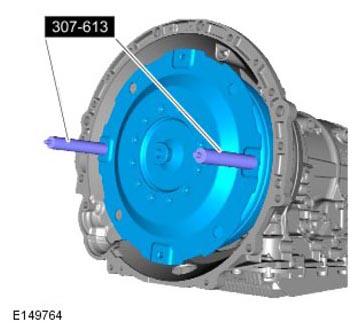

Using the special tools remove the torque converter.

Special Tool(s): 307-613
