Selector Shaft Seal (G1868145): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some illustrations may show the transmission removed for clarity.
- Refer to: ENGINE UNDERSHIELD
-
CAUTION:
- Before the disconnection or removal of any components, make sure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.
- Discard the seal.

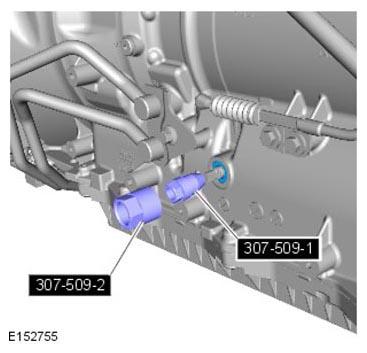

- Install 307-509-1 to the seal.
Special Tool(s): 307-509-1
- Install 307-509-2 to 307-509-1 and extract the seal.
Special Tool(s): 307-509-2
