Selector Shaft Seal (G1868145): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Install a new seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

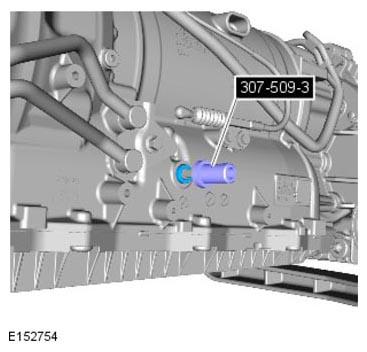

- Using 307-509-3, install the selector shaft seal.
Special Tool(s): 307-509-3

Renew Part: Selector lever assembly Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 12 Nm
Refer to: ENGINE UNDERSHIELD
