Input Shaft Seal (G1820947): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping fluids.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: TRANSMISSION - INGENIUM I4 2.0L DIESEL
Refer to: TRANSMISSION - INGENIUM I4 2.0L DIESEL

Refer to: TRANSMISSION - V6 S/C 3.0L PETROL

Refer to: TRANSMISSION - V6 S/C 3.0L PETROL
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

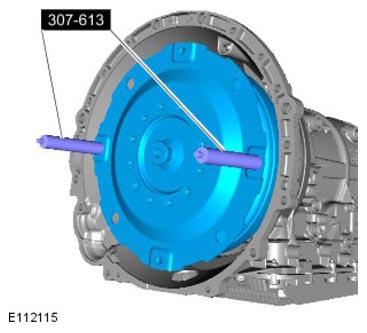

Special Tool(s): 307-613
CAUTION:
- Take extra care not to damage the edges of the component.
- Discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

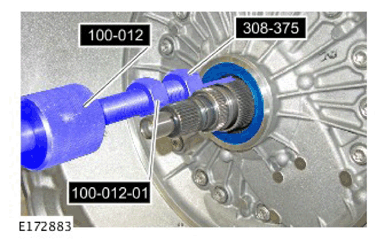

Special Tool(s): 100-012 , 100-012-01 , 308-375
