Input Shaft Seal (G1820947): Installation
WARNING: This page is about a different variant/trim than selected.
- CAUTION:
- Install a new seal.
- Care must be taken to avoid damage to the seal register and running surface.

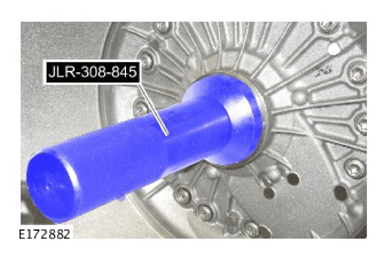

Special Tool(s): JLR-308-845
Renew Part: Transfer case input shaft oil seal Quantity: 1 .
Special Tool(s): 307-613
-
CAUTION: Make sure the torque converter is fully located into the oil pump drive.
- Refer to: TRANSMISSION - INGENIUM I4 2.0L DIESEL
Refer to: TRANSMISSION - TDV6 3.0L DIESEL
Refer to: TRANSMISSION - V6 S/C 3.0L PETROL
Refer to: TRANSMISSION - TDV6 3.0L DIESEL
