Extension Housing Seal (G1820948): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

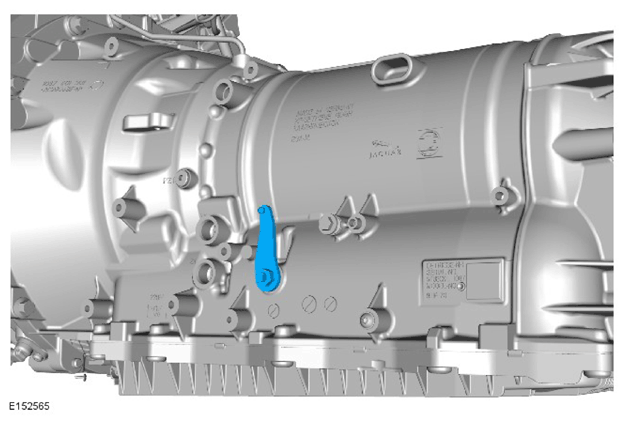

- Remove the selector cable.
- Secure with a cable tie.
CAUTION: Care must be taken not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Secure with cable ties.
CAUTION:
- Make sure that the driveshaft is supported with suitable retaining straps.
- Discard the bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the driveshaft to transmission output flange bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the cable tie.
Remove the transmission support insulator.
Refer to: TRANSMISSION SUPPORT INSULATOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the damper.
CAUTION: Discard the nut.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the output flange retaining nut.
Special Tool(s): 205-053
CAUTION: Discard the output flange.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

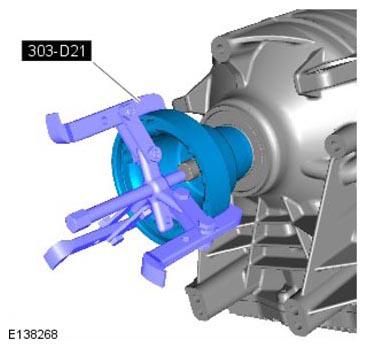

Using the special tool, remove the output flange.

Special Tool(s): 303-D121
CAUTION: Discard the seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

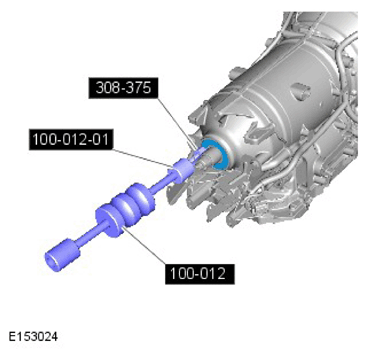

Using the special tool, remove the extension housing seal.

Special Tool(s): 100-012 , 100-012-01 , 308-375
