Extension Housing Seal (G1820948): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- Install a new seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

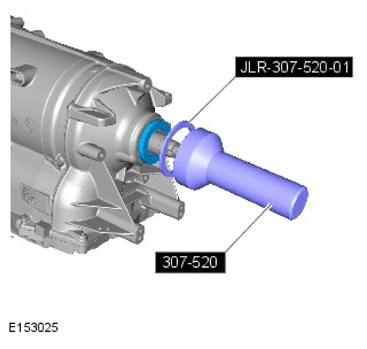

- Using the special tool, install the extension housing seal.
  Renew Part: Extension housing seal Quantity: 1 .
- Special Tool(s): 307-520
- Special Tool(s): JLR-307-520-01
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

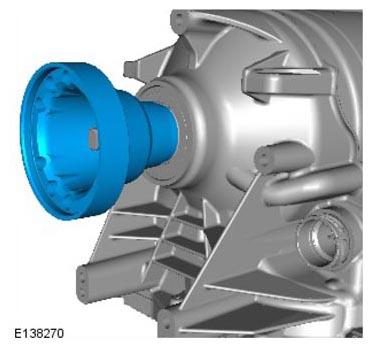

Install the output flange.

Renew Part: Transmission output shaft flange Quantity: 1 .
WARNING: Make sure that a new nut is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

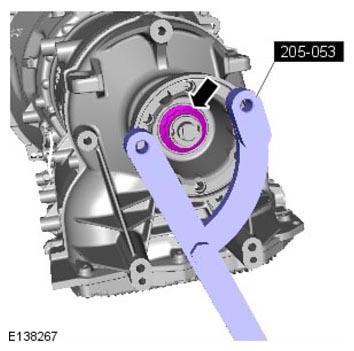

- Using the special tool, install the transmission output flange retaining nut.
  Renew Part: Output shaft flange nut Quantity: 1 .

  Torque : 60 Nm
- Special Tool(s): 205-053
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

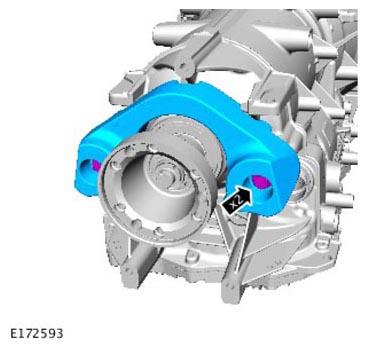

Torque : 48 Nm
CAUTION: Care must be taken not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

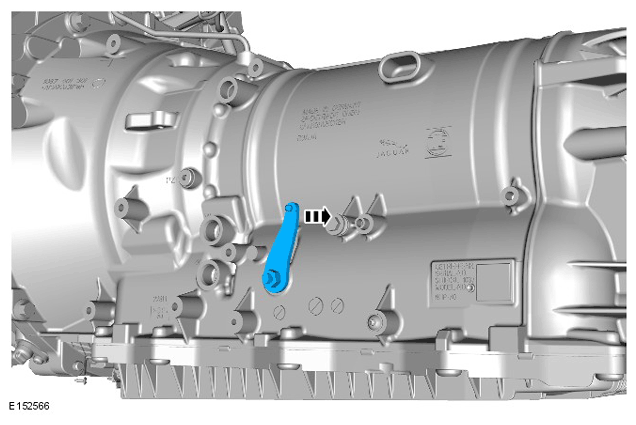

- Secure with a cable tie.
CAUTION: Make sure that new bolts are installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

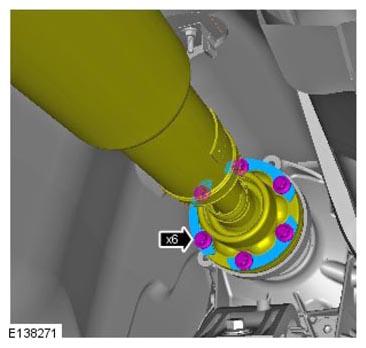

Install the driveshaft.

Renew Part: Driveshaft to front output flange bolts Quantity: 6 .

Torque : 75 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

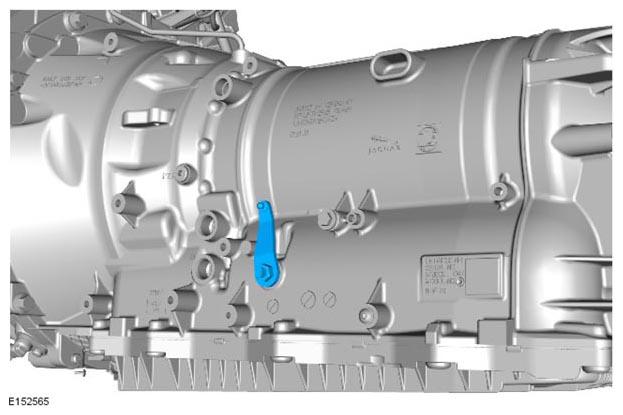

- Remove the cable tie.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

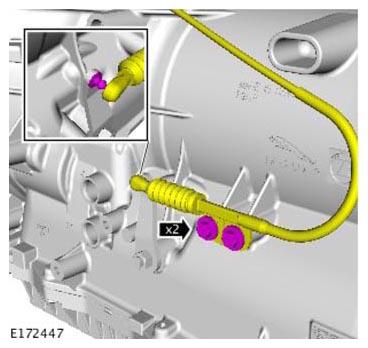

Install the selector cable.

Torque : 11 Nm
Install the transmission support insulator.
Refer to: TRANSMISSION SUPPORT INSULATOR
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
