Transmission Fluid Level Check (G1867745): Check

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • Observe due care when draining, as the fluid can be very hot.
  • Observe due care when working near a hot exhaust system.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
    • The following steps must be observed before starting the transmission fluid level check.
    • The vehicle must be on a horizontal ramp.
    • Make sure that the Electric Park Brake (EPB) is applied.
    • Make sure the Transmission Control Switch (TCS) is in the Park (P) position.
  2. Raise and support the vehicle.

    Refer to: LIFTING

  3. Remove the engine undershield.

    Refer to: ENGINE UNDERSHIELD

  4. Lower the vehicle.
  5. NOTE: Make sure that the transmission is not in the default mode, if this is the case, stop and correct the cause first and then restart the fluid level check.
    1. Connect Land Rover approved diagnostic equipment to the vehicle.
    2. Start the engine and allow to idle.
    3. Switch off the Air Conditioning (A/C) system and other electrical components.
  6. CAUTION: Using Land Rover approved diagnostic equipment, make sure the transmission temperature is between 30°C (85°F) and 50°C (122°F) before starting the fluid level check.
    • Apply and hold the brake pedal.
    • Select reverse gear and wait for 10 seconds.
    • Select drive, then manual 1st gear and wait for 10 seconds.
    • Select 2nd gear and wait for 10 seconds.
    • Select Park (P) on the TCS.
    • Raise the engine speed to 2000 rpm and hold for 30 seconds. Then return to idle speed.
    • Using Land Rover approved diagnostic equipment, check the transmission fluid temperature.
    • If the transmission oil temperature is lower than 30°C (86°F). Allow the transmission to warm up above 30°C (86°F) with the engine idling in the P position, then proceed with the transmission fluid level check.
    • If the transmission oil temperature is above 50°C (122°F), switch off the engine and allow the transmission to cool down, then repeat steps  7 and 8.
  9. CAUTION: Only continue with the fluid level check if the transmission temperature is between 30°C (86°C) and 50°C (122°).
    NOTE: Use a suitable container to collect escaping fluid.

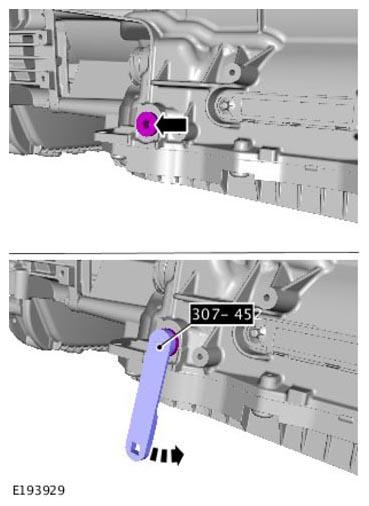

    G11313730Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the oil filler plug.
    2. If fluid flows out of the oil filler hole, proceed to step  12.
    3. If fluid does not flow out of the oil filler hole, proceed to step 10.

    Special Tool(s): 307-452

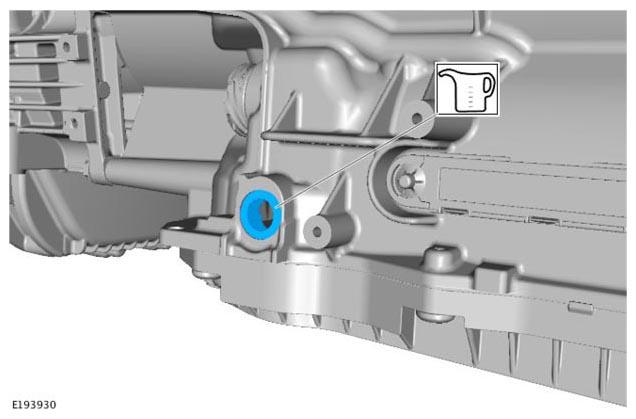

  10. G11313731Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Top up the transmission with the recommended transmission oil until fluid flows out of the oil filler hole. Refer to fluid specification.

      Refer to: SPECIFICATIONS

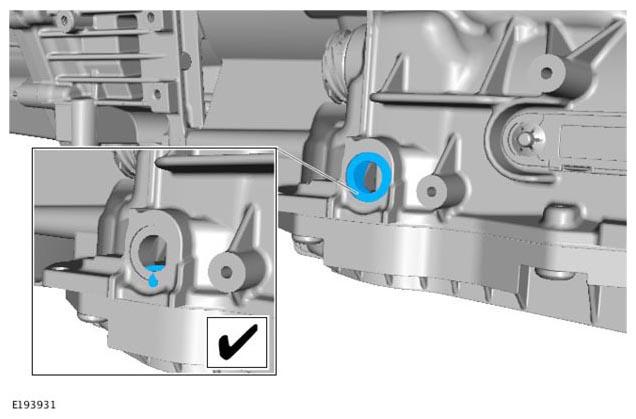

  11. G11313732Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Allow the transmission fluid to drain from the oil filler hole until the flow stops.

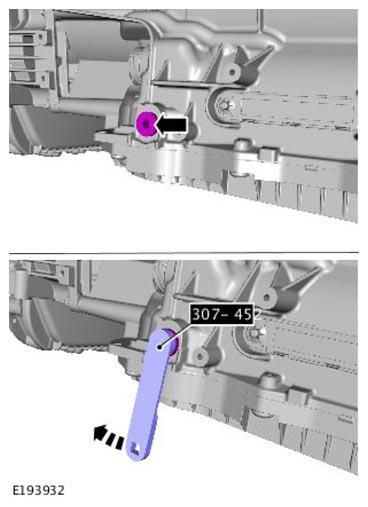

  12. G11313733Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using the special tool, install a new oil filler plug.

      Renew Part: Transmission fill plug  Quantity: 1  .

    • Special Tool(s): 307-452
  13. CAUTION: Make sure the transmission fluid fill plug is tightened to the correct specification. Failure to follow this instruction may result in damage to the transmission.

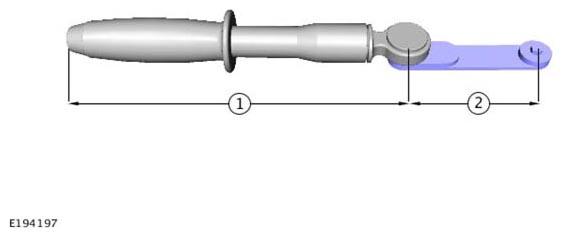

    G11313734Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • To make sure the transmission fill plug is torqued to the correct specification. Using the special tool and torque wrench the following calculation steps must be followed.
    • Step 1. Multiply 35 Nm by the effective length of the torque wrench (1).
    • Step 2. Add the effective length of the special tool (2) to the effective length of the torque wrench (1).
    • Step 3. Divide the total of step 1 by the total of step 2.
    • Step 4. Set the torque wrench to the figure arrived at in step 3.
    • Tighten the transmission fluid fill plug to the torque given by the calculation.
    • Remove the special tool.

    Special Tool(s): 307-452

  15. Clean the area around the filler plug, wipe away any excess fluid and remove the container.
  16. Install the engine undershield.

    Refer to: ENGINE UNDERSHIELD

  17. Lower the vehicle.
  18. Disconnect the Land Rover approved diagnostic equipment from the vehicle.
