Transmission Fluid Drain And Refill (G2247231): Draining

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the air deflector.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Remove the oil filler plug, do not discard.
Special Tool(s): 307-452
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- NOTE: Use a suitable container to collect escaping fluid.

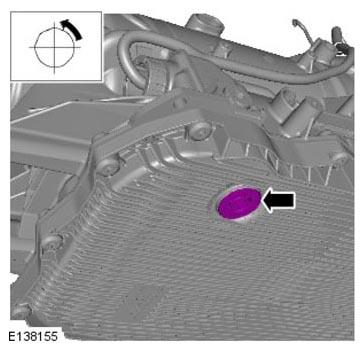

  Remove and discard the transmission drain plug.
- Allow the transmission fluid to drain into the container.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new transmission drain plug.
  Renew Part: Transmission fluid drain plug Quantity: 1 .

  Torque : 8 Nm
- Clean the area around the fluid filler plug, wipe away any excess fluid.
