Oil Pan (G1817153): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Refer to: FRONT SUBFRAME - INGENIUM 2.0L DIESEL(G1817267)
Refer to: CRANKSHAFT PULLEY
Refer to: CRANKSHAFT PULLEY

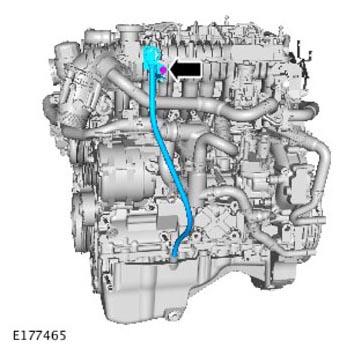

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 7 Nm

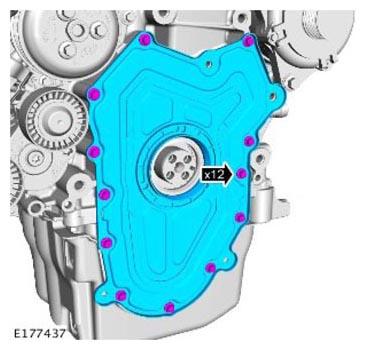

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 25 Nm
Loosen, but do not fully remove the bolts.

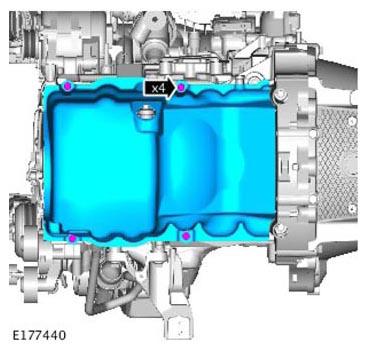

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

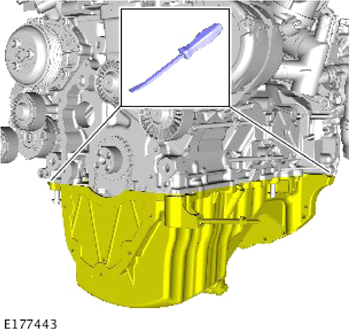

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
