Crankshaft Rear Seal (G1817146): Installation

WARNING: This page is about a different variant/trim than selected.

The following step(s) applies to:

All vehicles

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

CAUTION: Make sure that the area around the component is clean and free of foreign material.

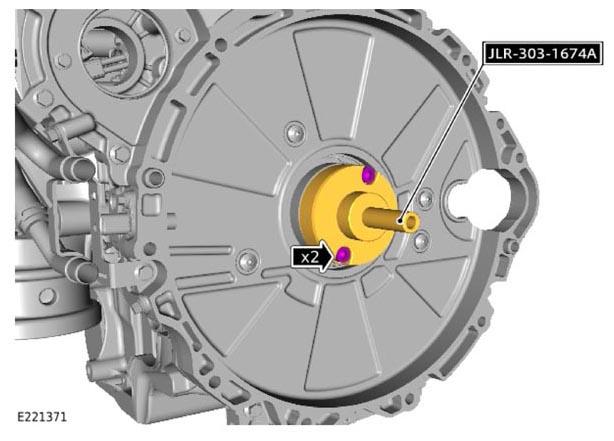

Install the special tool (JLR-303-1674) to the rear of the crankshaft.

Special Tool(s): JLR-303-1674A
CAUTION:
- Make sure a new seal is installed.
- If the seal is removed from the spacer provided, a new seal must be installed.
- Make sure that the area around the component is clean and free of foreign material.
NOTE: The component labeled (2) in the illustration is a alignment spacer provided with a new seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Position the new crankshaft oil seal (1) and spacer (2) over special tool JLR-303-1674A. Carefully slide the crankshaft oil seal (1) over the end of the crankshaft and discard the spacer (2).

Special Tool(s): JLR-303-1674A

Renew Part: Crankshaft rear seal Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

CAUTION: Make sure the seal is installed correctly.

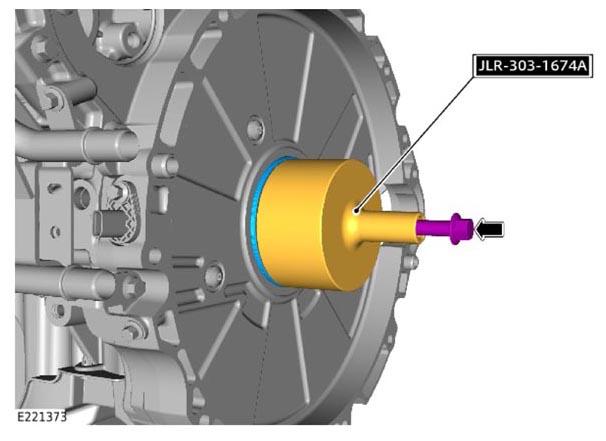

Install the second part of special tool JLR-303-1674A to position the crankshaft oil seal correctly.

Special Tool(s): JLR-303-1674A
- Tighten the bolt until the seal is fully installed and the bolt stops turning.
The following step(s) applies to:

Vehicles with automatic transmission
Install the drive plate.
Refer to: FLEXPLATE

The following step(s) applies to:

Vehicles with manual transmission
Install the flywheel.
Refer to: FLYWHEEL

The following step(s) applies to:

All vehicles
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
