Crankshaft Pulley (G181144): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

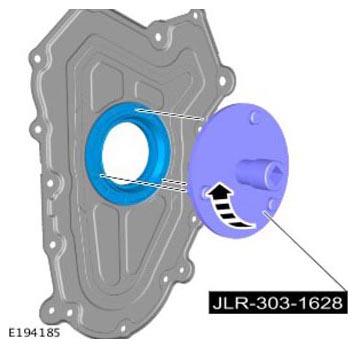

Using the special tool install a new front crankshaft seal.

Special Tool(s): JLR-303-1628

Torque: 26 Nm
NOTE:
- Make sure that the mating faces are clean and free from foreign material.
- Install crankshaft damper onto guide pin for correct installation.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): JLR-303-1630
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Before installing the new crankshaft damper bolts check the length of the thread as shown in the illustration. The new bolts must be 48 mm in length.
CAUTION: Make sure that new bolts are installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install four crankshaft damper bolts.

Special Tool(s): JLR-303-1630

Torque

Stage 1: 37 Nm

Stage 2: 90°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): JLR-303-1630
To install, reverse the removal procedure.
