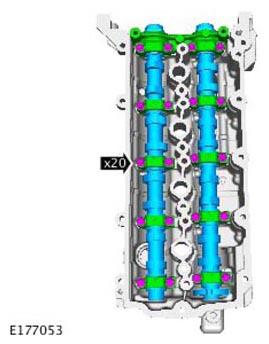

Camshafts (G1817149): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the fuel rail.
Refer to: FUEL RAIL
Remove the fuel injectors.
Refer to: FUEL INJECTORS
Remove the upper timing chain.
Refer to: UPPER TIMING CHAIN - REMOVE FOR ACCESS (G2735404)
CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

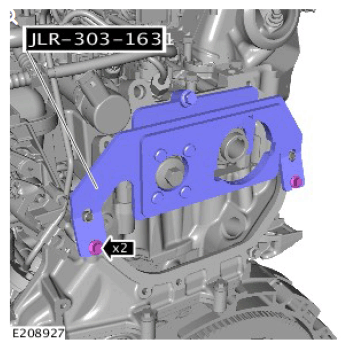

Install the special tool.

Special Tool(s): JLR-303-1631
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Loosen the camshaft gear bolt but do not remove at this stage.
- Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the camshaft gear and discard the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

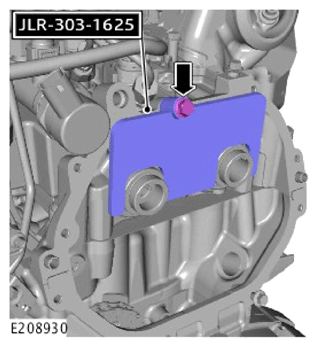

Remove the special tool.

Special Tool(s): JLR-303-1625
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

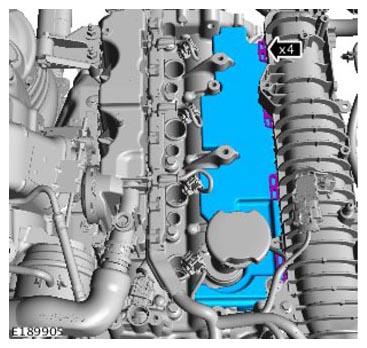

Remove the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

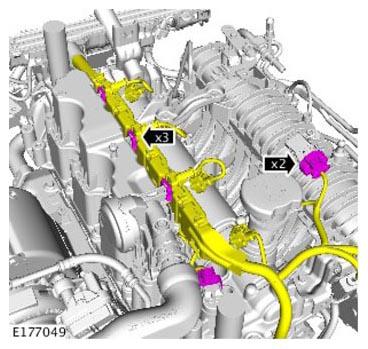

Disconnect the 2 electrical connectors and position the harness to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cylinder head temperature sensor electrical connector bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

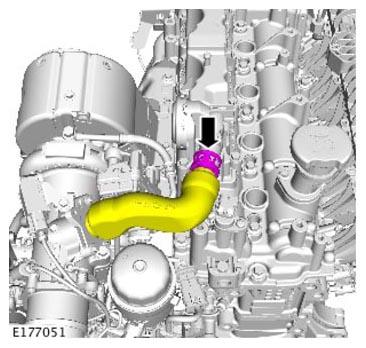

Position the crankcase breather to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

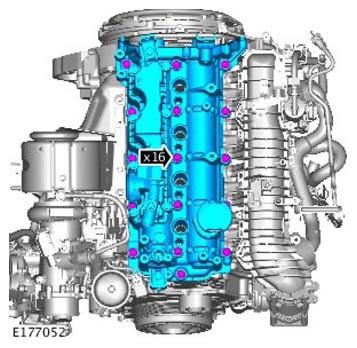

Remove the valve cover and discard the gasket.

NOTE: Note the orientation of the component prior to removal

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
