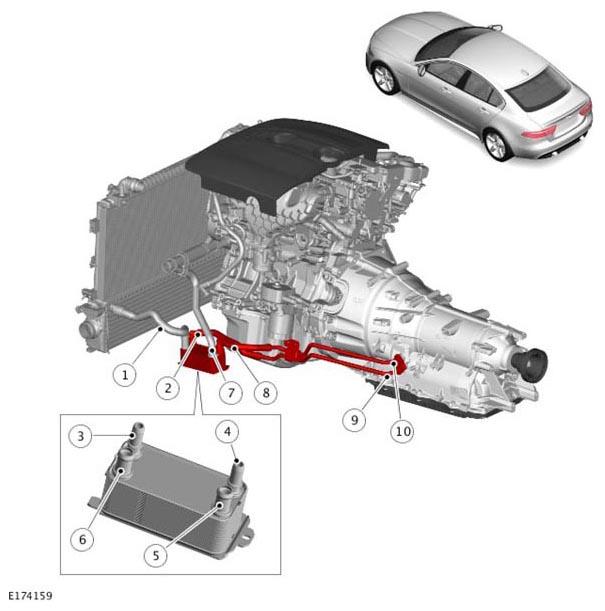

Component Location
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Radiator engine coolant outlet hose |
| 2 | Return hose and pipe - to transmission |
| 3 | Supply pipe connection to Automatic Transmission Fluid (ATF) cooler |
| 4 | Return pipe connection to Automatic Transmission Fluid (ATF) cooler |
| 5 | Engine coolant hose connection to Automatic Transmission Fluid (ATF) cooler |
| 6 | Engine coolant hose connection to Automatic Transmission Fluid (ATF) cooler |
| 7 | Return pipe |
| 8 | Coolant supply pipe |
| 9 | Coolant supply pipe connection to transmission |
| 10 | Return hose and pipe connection to transmission |
