Glow Plug Module (G1842676): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

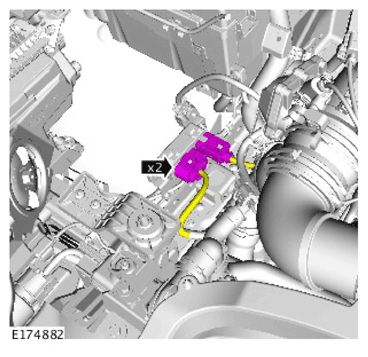

  2. G11308053Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

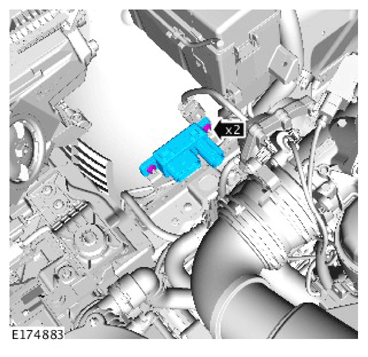

  3. G11308054Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10Nm
