Glow Plug

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

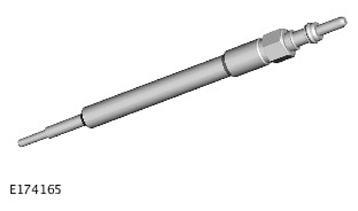

G11327903Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The glow plugs are a low voltage ceramic type, At the tip of the tubular heating element is the heater coil. Behind the heater coil, and connected in series, is a control coil. The control coil regulates the current to the heater coil to safeguard against overheating.

It is important that the correct torque setting is used when refitting a glow plug into the cylinder head.
