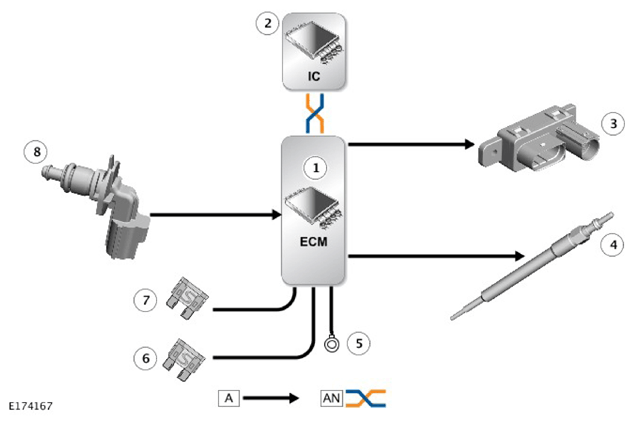

Control Diagram
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED, AN = HIGH SPEED CAN POWERTRAIN BUS
| ITEM |
DESCRIPTION |
| 1 |
Engine Control Module (ECM) |
| 2 |
Instrument Cluster (IC) |
| 3 |
Glow plug control module |
| 4 |
Glow plug (4 off) |
| 5 |
Ground |
| 6 |
Power Supply from ignition relay |
| 7 |
Power supply from ignition relay |
| 8 |
Engine Coolant Temperature (ECT) sensor |
