Image Processing Module (G2046486): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the interior rear view mirror.
Refer to: INTERIOR REAR VIEW MIRROR

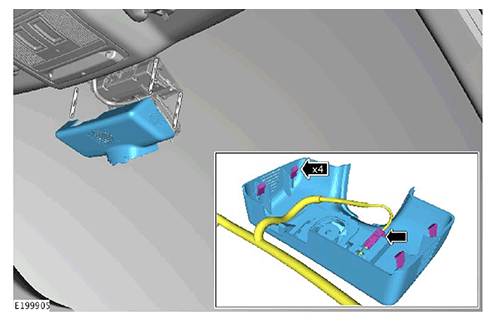

Remove the cover.

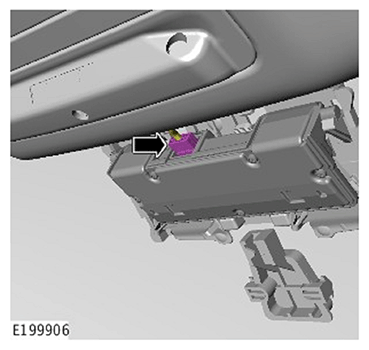

Disconnect the electrical connector.

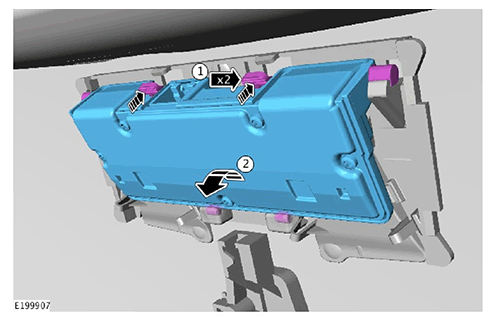

Remove the camera in the illustrated sequence.
