Adaptive Speed Control Module (G2268727): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

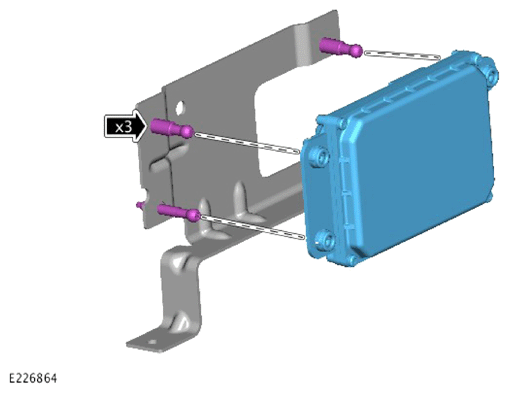

Install the Speed Control Module (SCM) onto the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

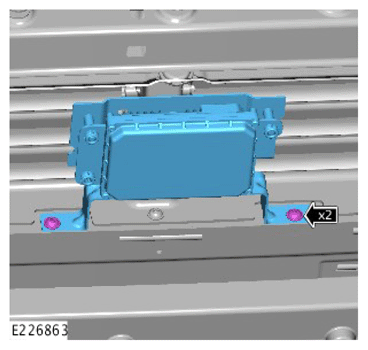

- Install the SCM bracket.
- Install and tighten the 2 bolts.
  Torque : 7Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

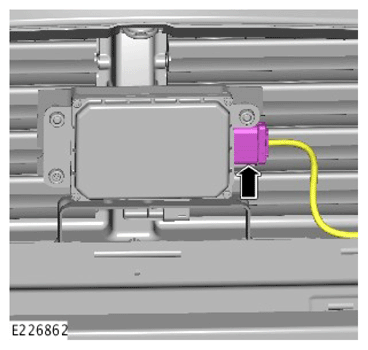

Connect the electrical connector.
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
NOTE:
- This step is only required if the component was removed for access.
- Choose a road with stationary objects on the roadside.
- Following vehicles too closely will obscure the stationary targets from the radar, a gap of 2 seconds is recommended.
1. Connect the Jaguar Land Rover (JLR) approved diagnostic equipment.
  General Equipment: Jaguar Land Rover approved diagnostic equipment
2. Select 'Cruise Control Module [CCM] - Service Alignment Mode' from the diagnostic menu.
3. Make sure that all steps from the on-screen instructions are followed.
NOTE:
- This step is only required if a new component is installed.
- Choose a road with stationary objects on the roadside.
- Following vehicles too closely will obscure the stationary targets from the radar, a gap of 2 seconds is recommended.
1. Connect the JLR approved diagnostic equipment.
  General Equipment: Jaguar Land Rover approved diagnostic equipment
2. Select 'Cruise Control Module [CCM] - Replace ECU' from the diagnostic menu.
3. Make sure that all steps from the on-screen instructions are followed.
