Adaptive Speed Control Module Adjustment (G1854718): Check

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure details how to adjust the speed control sensor vertically. There is no horizontal adjustment required.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: FRONT BUMPER - PROJECT 8

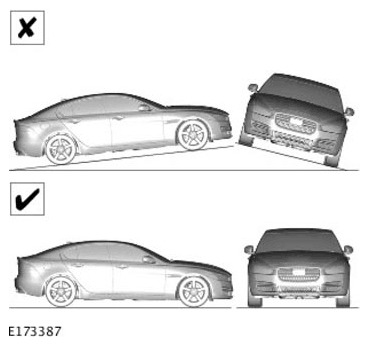

NOTE: Make sure that the vehicle is standing on a level surface.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

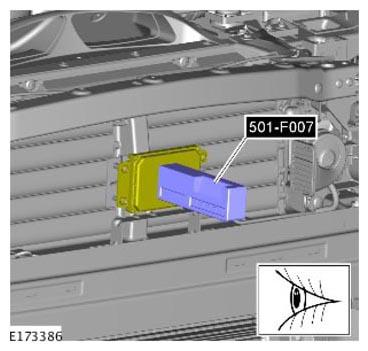

Using the special tool, check the speed control sensor is level, (+/- 0.5 degree).

Special Tool(s): 501-F007
