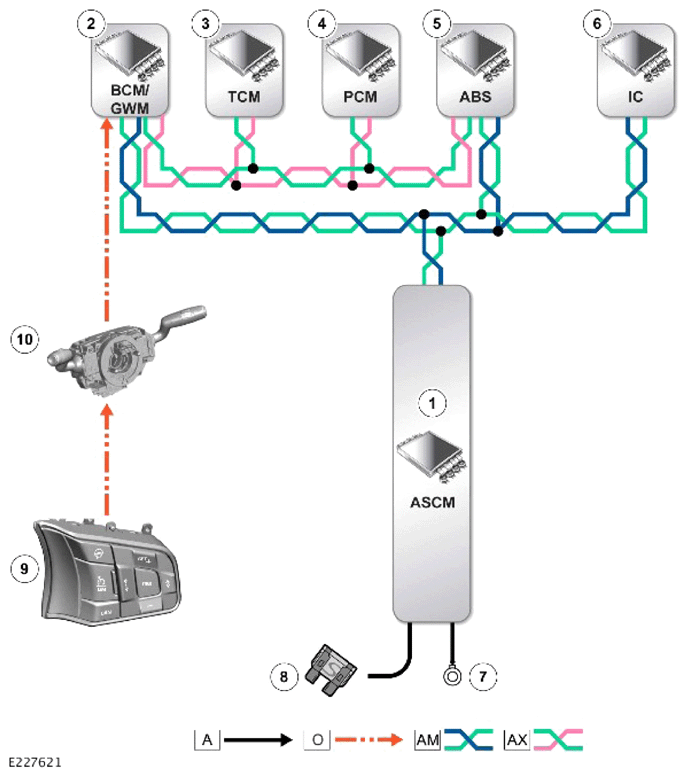

Control Diagram - 2 Of 2 - Adaptive Speed Control
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN) BUS: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Adaptive Speed Control Module (ASCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Transmission Control Module (TCM) |
| 4 | Powertrain Control Module (PCM) |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Instrument Cluster (IC) |
| 7 | Ground |
| 8 | Power supply |
| 9 | Right steering wheel switchpack |
| 10 | Clockspring |
