Roof Opening Panel Weatherstrip (G1851642): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Remove the front roof opening panel glass.

    Refer to: ROOF OPENING PANEL GLASS

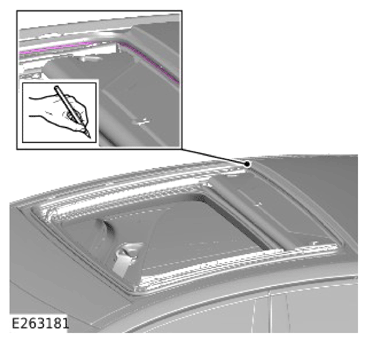

  2. G14011646Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Mark the installed position of the roof opening panel weatherstrip.

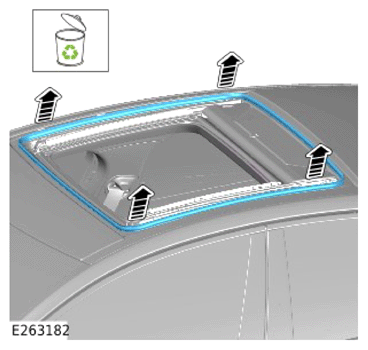

  3. G14011647Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the roof opening panel weatherstrip.
